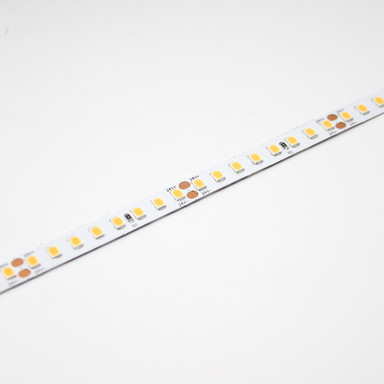

24V Advance SMD Series LED Strip Light, 14.4w p/m, 160 LEDs p/m, CRI>95, 3000K, 5 Metre Reel
AS24-3K-160-5M-95
Key Features
- 3000K
- 24V
- 14.4 Watts p/m
- Up to 1545 Lumens p/m
- >95 CRI
- 8mm Width
- 7 Year Warranty
- 50mm Cut Points
For LDT files, please sign in
Product Overview

Advanced SMD technology for commercial and industrial environments. Designed for high end display and feature lighting featuring an industry leading >95 CRI output. At 1540 lumens per metre and 118 lumens per watt on average across the range these tapes provide a bright, efficient and extremely high quality light output.
Ideal for display and feature applications where a reliable, long term and industry leading quality light source is required, such as supermarkets, art galleries, theatres and other high end installations. Built with the highest specs featuring a 3oz copper PCB and superior 3M self-adhesive backing
Complete with a 500mm 2 core cable at each end of the tape, superior 3M self-adhesive backing and a 7 year warranty to back up performance and reassurance.
Maximum runs of up to 5 linear metres can be achieved with this tape before visible voltage drops occur.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Colour | 3000K Warm White |
| Voltage | 24V |
| Amps per Metre | 0.6 Amps p/m |
| Watts Per Metre | 14.4 Watts p/m |
| Cut Points | Every 50mm |
| CRI | 95 |
| SDCM | 2 |
| Lumens Per Metre | 1545lm/m |
| Lumens Per Watt | 118 lm/w |
| LEDs Per Metre | 160LEDs p/m |
| Tape Width | 8mm |
| Water Resistance | IP20 |
| Min Operating Temperature | -25°C |
| Max. Operating Temperature | 40°C |
| Energy Rating | F |
| Warranty | 7 Years |
| Dimmable | Yes |
| Energy Efficiency Class | F |
| Max. Run Length (m) | 5 |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Length (m) | 500 |
| Cut Points (mm) | 50 |
| LEDs Per Metre (LEDs/m) | 160 |
| Product Height (mm) | 2 |
| Depth (mm) | 5000 |
| Product Weight (g) | 95 |
| Width (mm) | 8 |
| Battery Included | No |
| Beam Angle (°) | 120 |
| CCT (Kelvin) | 3000 |
| CCT Max. (Kelvin) | 3000 |
| CCT Min. (Kelvin) | 3000 |
| Total Lumens (Lm) | 7725 |
| Lumens Per Watt (Lm/W) | 107 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Dimensions LxWxH (mm) | 5000x8x2 |
| Colour Temperature Min. - Max. (Kelvin) | 3000-3000K |
| Brand | Tagra |
| Family Name | High Definition |
| Warranty (Years) | 7 |
| Body Colour | White |
| Bend Direction | Vertical |
| Lumens Per Metre (Lm/m) | 1540.8 |
