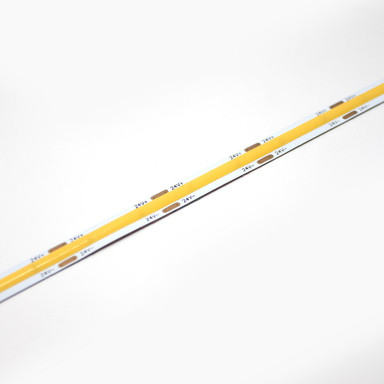

24V Professional COB Spotless LED Strip Light, 11.2w p/m 2700K CRI>90, 5 Metre Reel
PC24-27K-5M-90
£58.60 Inc. VAT
Key Features
- 2700K
- 24V
- 11.2 Watts p/m
- 820 Lumens p/m
- IP20
- 7 Year Warranty
- 29.41mm Cut Points
- Also Available in 50m
- Also Available as Cut to Order
For LDT files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Leave spotting in the dark with the new professional standard in 100% spotless chip on board LED tape. Perfect for a highly desired seamless, spotless and continuous linear lighting solution. Designed for installation into standard LED channels with an internal width of 8mm or more. Comes with a 500mm 2 core cable with tinned ends fitted at each end of the tape and cut points every 29.41mm.
Perfect for creating eyecatching, professional standard linear lighting displays, outputting 93 Lumens per watt and 928 lumens per metre on average. Compatible with DMX, standard and professional Single Colour LED controllers.
Complete with a peace of mind 7 Year Guarantee for indoor use.
Capable of a maximum continuous run of Up to 5 metres at 24 volts based on a 10% voltage drop after 5 metres. Complete with a 3m self adhesive backing for easy mounting into LED Channel.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Videos
Product Specification
| Colour | 2700K Very Warm White |
| Voltage | 24V |
| Amps per Metre | 0.4 Amps p/m |
| Watts Per Metre | 11.2 Watts p/m |
| Cut Points | Every 29.4mm |
| CRI | 90 |
| SDCM | 3 |
| Lumens Per Metre | 820lm/m |
| Lumens Per Watt | 82 lm/w |
| LEDs Per Metre | 544 |
| Tape Width | 8mm |
| Water Resistance | IP20 |
| Min Operating Temperature | -25°C |
| Max. Operating Temperature | 40°C |
| Energy Rating | G |
| Guarantee | 7 Years |
| Dimmable | Yes |
| Energy Efficiency Class | G |
| Max. Run Length (m) | 5 |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Length (m) | 500 |
| Copper Foil Weight (oz) | 2 |
| Cut Points (mm) | 29.41 |
| LEDs Per Metre (LEDs/m) | 544 |
| Product Height (mm) | 2 |
| Depth (mm) | 5000 |
| Product Weight (g) | 85 |
| Width (mm) | 8 |
| Battery Included | No |
| Beam Angle (°) | 140 |
| CCT (Kelvin) | 2700 |
| CCT Max. (Kelvin) | 2700 |
| CCT Min. (Kelvin) | 2700 |
| Total Lumens (Lm) | 4100 |
| Lumens Per Watt (Lm/W) | 73 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Dimensions LxWxH (mm) | 5000x8x2 |
| Colour Temperature Min. - Max. (Kelvin) | 2700-2700K |
| Brand | Tagra |
| Family Name | Professional COB |
| Warranty (Years) | 7 |
| Body Colour | White |
| Bend Direction | Vertical |
| Lumens Per Metre (Lm/m) | 817.5999999999999 |
