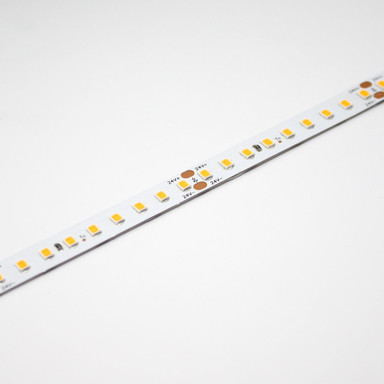

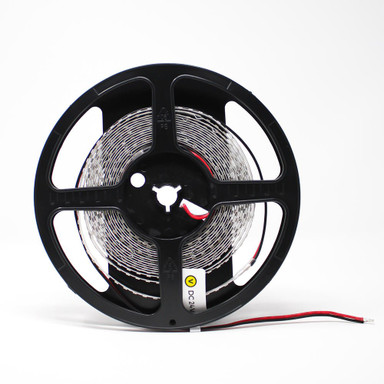

24V Professional High Efficiency Series LED Strip Light, 7.7w p/m, 144 LEDs p/m, CRI>80, 2700K, 5 Metre Reel
PH24-27K-144-5M-80
£107.10 Inc. VAT
Key Features
- 2700K
- 24V
- 7.7 Watts p/m
- Up to 1370 Lumens p/m
- 196 Lumens p/w
- >80 CRI
- 10mm Width
- Energy Rating of C
- 7 Year Warranty
- 100mm Cut Points
For LDT files, please sign in
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview

Professional performance coupled with cost saving efficiency. More lumens for your watt at approximately 200 lumens per watt on average across the range and a Energy Rating of C which conforms to British and EU ErP Directives.
This results in a bright high output tape with less power requirements, making our high efficiency range an emission and cost saving economical professional grade LED light source.
Suitable for a variety of display and accent lighting applications with a lumen output of 1425 Lumens per metre on average across the 144 LED p/m High Efficiency range.
At 144 LEDs per metre this LED tape is designed for ambient and primary lighting applications to illuminate your space to a high standard and provide a cost effective lighting solution.
Complete with a 500mm 2 core cable at each end of the tape, superior 3M self-adhesive backing and a 7 year warranty to back up performance and reassurance.
Maximum runs of up to 5 linear metres can be achieved with this tape before visible voltage drops occur.
Dimming Compatibility
- Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
- Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Colour | 2700K Very Warm White |
| Voltage | 24V |
| Amps per Metre | 0.32 Amps p/m |
| Watts Per Metre | 7.7 Watts p/m |

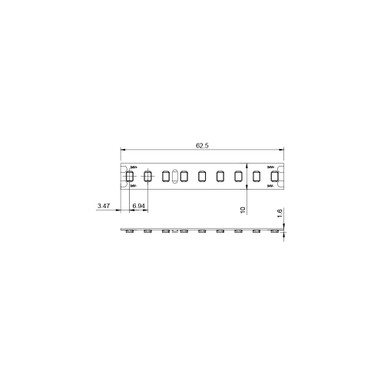

| Cut Points | Every 62.5mm |
| CRI | 80 |
| SDCM | 2 |
| Lumens Per Metre | 1370lm/m |
| Lumens Per Watt | 195 lm/w |
| LEDs Per Metre | 144LEDs p/m |
| Tape Width | 10mm |
| Water Resistance | IP20 |
| Min Operating Temperature | -25°C |
| Max. Operating Temperature | 40°C |
| Energy Rating | C |
| Warranty | 7 Years |
| Dimmable | Yes |
| Energy Efficiency Class | C |
| Max. Run Length (m) | 5 |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | INTERIOR |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cable Length (m) | 500 |
| Cut Points (mm) | 62.5 |
| LEDs Per Metre (LEDs/m) | 144 |
| Product Height (mm) | 2 |
| Depth (mm) | 5000 |
| Product Weight (g) | 110 |
| Width (mm) | 10 |
| Battery Included | No |
| Beam Angle (°) | 120 |
| CCT (Kelvin) | 2700 |
| CCT Max. (Kelvin) | 2700 |
| CCT Min. (Kelvin) | 2700 |
| Total Lumens (Lm) | 6850 |
| Lumens Per Watt (Lm/W) | 178 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 40℃ |
| Dimensions LxWxH (mm) | 5000x10x2 |
| Colour Temperature Min. - Max. (Kelvin) | 2700-2700K |
| Brand | Tagra |
| Family Name | High Efficiency |
| Warranty (Years) | 7 |
| Body Colour | White |
| Bend Direction | Vertical |
| Lumens Per Metre (Lm/m) | 1370.6000000000001 |
