Tagra | IP68 | 24V | Architectural | Horizontal Bend LED Neon Flex | 16x17mm | 12.0W p/m | Single Colour
TL-NEON-ARCPSV-COL
Key Features
- CRI 90
- 5 Year Warranty
- IP67
- 4.5 Watts per Metre
- 24V
- £POA
Product Overview
This is a call to order product, please call us on 0800 088 3300 or fill in the 'Request a Quote' form above to be contacted.
Information:

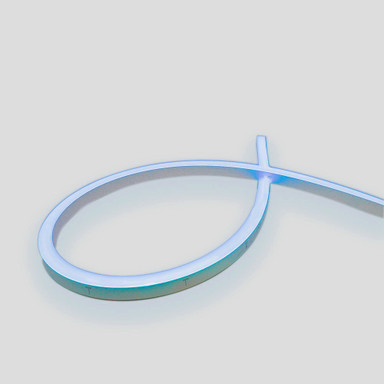

Introducing our single colour Side View Pro neon up to IP68 rated Neon flexible lighting in 16mm x 17mm. Ideal for facades, yachts, ships, stadium lighting, outdoor feature lighting and a level of versatility and flexibility unparalleled on the market.
Available in red, blue, green and amber. Our Professional Architectural Neon comes complete with a 5 Year Indoor and Outdoor Guarantee and is flame resistant, age tested against chlorine, salt, and solvents. Our range of professional grade neon flex is built and tested to the highest standards. UL, TUV, CE & RoHs compliant and tested to rigorous mechanical and photometric standards.
Installations:
The Pro Architectural range from Tagra is designed for Architects, large projects/events and permanent installations. Fully encapsulated, it holds an IP67 ingress rating thanks to injection moulded connections and can achieve an IP68 rating if required. A wide range of variations and accessories available with options to RAL colour match. Ideal for Architectural and Facade lighting. This product is part of a range that includes vertical bend and horizontal bend for many installation types.
Available SKUs:
TL-NEON-ARCPSV-AMB
TL-NEON-ARCPSV-BLU
TL-NEON-ARCPSV-GRE
TL-NEON-ARCPSV-RED
Product Specification
| Colour | Red, Blue Green, Amber |
| Voltage | 24V |
| Water Resistance | IP67 |
| Impact Resistance | IK08 |
| Watts Per Metre | 4.5Watts p/m |
| Amps Per Metre | 0.19 Amps p/m |
| Lumens Per Metre | 170 lm/m |
| Length | Sold per Metre |
| Width | 17mm |
| Bend Direction | Horizontal |
| Max. Linear Run | 10 Metres |
| Cut Points | 14.66mm |
| Material | Silicone |
| Min. Operating Temperature | -25°C |
| Max. Operating Temperature | 45°C |
| Guarantee | 5 Years |
| Max. Run Length (m) | 10 |
| Body Material | Silicone |
| Ingress Protection (IP) | 68 |
| Input Current Type (A) | DC |
| Input Voltage Min. - Max (V) | 24-24V |
| Cut Points (mm) | 55.6 |
| Product Height (mm) | 16 |
| Width (mm) | 16 |
| Lumens Per Metre (Lm/m) | 170 |
| Operating Temperature Min. - Max. (°C) | -25℃ to 45℃ |
| Dimensions LxWxH (mm) | 1000x16x16 |
| Brand | Tagra |
| Family Name | 16x17 |
| Depth (mm) | 1000 |
| Warranty (Years) | 5 |
| Body Colour | White |
| Lumens Per Watt (Lm/W) | 14 |
| Beam Angle (°) | 120 |
| Product Weight (g) | 370 |
