Bendable LED Aluminium Profile 18 x 5.7mm

Specifications:

• Dimensions: 18mm x 5.7mm
• Max Tape Width: 13mm
• Material: Aviation 6063-T5 aluminum alloy





Applications:

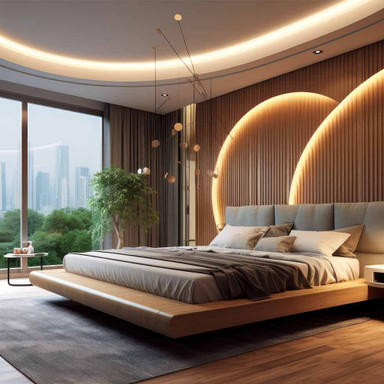

• Architectural Lighting: Used in archways, coves, and other architectural features with curves or unique shapes.
• Furniture Design: Integrated into modern furniture pieces for aesthetic lighting or functional purposes, like under curved counters or in circular displays.

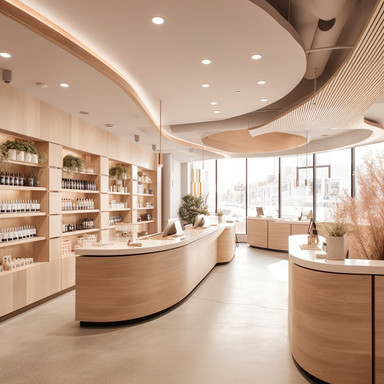

• Retail Displays: In shops where products on display require indirect accent lighting, especially on non-linear surfaces.



Additional information:

• Available in 2 and 3 metre lengths or custom lengths on request
• Opal Diffuser included
• Mounting brackets and end caps available



Bendable LED aluminum profiles are flexible channels for LED strip lights, allowing for installation in non-linear and irregular spaces, especially where traditional rigid profiles wouldn't fit or work.



Given their flexibility and the advantages they bring, bendable LED aluminum profiles of the size 18 x 5.7mm offer both functional and aesthetic lighting solutions for a myriad of applications.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The separately sold semi clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

This is a shallow profile so it is recommended to use this profile for indirect lighting applications. To achieve a highly desired non spotting finish, consider using this profile with a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor use in dry environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments.
