LTECH | Professional | 24V | DALI Constant Voltage | LED Driver | 75W | IP20

LM-75-24-G1D2

£70.80 Inc. VAT

Key Features

24V
Up to 75W
DALI Dimmable LED Driver
IP20
5 Year Warranty

DATA SHEET - LM-75-24-G1D2PDF Download

Total

£70.80 Inc. VAT

Add to list

Pay by card, American Express, PayPal, Apple Pay or Google Pay

Delivery & Returns

Free UK DeliveryOrders over £75
Next Day DeliveryFrom £8.95
Returns14 Day Policy

Product Overview

Product Specification

Technical Documents

Customer Reviews

Product Overview

Technical Specifications:

Output Voltage: 24V DC
Output Current: Max. 3.125A
Output Power: 75W
Dimming Range: 0~100%
Dimming Interface: DALI-2
Efficiency: 91%

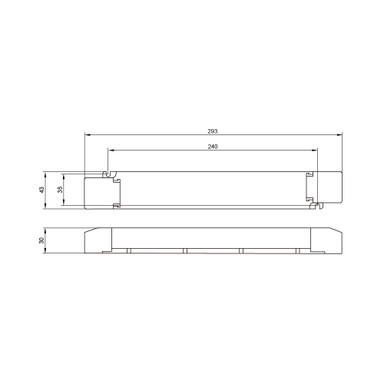

Dimensions (mm): 293 x 43 x 30
Guarantee: 5 Years

Information

Introducing our range of DALI LED Drivers for market-leading brand LTECH. These high performance LED Drivers have been designed and built with quality materials and components. Highly efficient, secure and reliable, they come with built-in protection and a 5 year warranty as standard.

Featuring a DALI-2 interface and a dimming range of 0~100%, capable of dimming down to 0.1%. They produce a high performance, flicker-free output. Also features an innovative thermal management technology that intelligently protects for the lifetime of the driver.

Installation:

Available in IP20 making it suitable for indoor installation. Can be installed onto a surface via the mounting points located at either end of the LED Driver.

Product Specification

Output Voltage	24V
Output Current	Up to 3.125A
Rated Power	Up to 75W
Dimming Range	0~100%
Dimming Mode	DALI-2
Input Voltage Range	AC200-240V
Frequency	50/60Hz
Power Factor	> 0.97
Ingress Protection	IP20
Min. Operating Temperature	-20°C
Max. Operating Temperature	45°C
Warranty (Years)	5
Brand	LTECH
