Solderless IP Tape To Tape Snap Connectors for 14mm 5 Core RGBW LED Tapes
CB-IP14MM-5BRIDGE
£5.23 Inc. VAT
Key Features
- Innovative Solderless Design
- Silicone Injection Technology
- For 14mm IP Rated RGBW LED Tape
- 5 Cores
- 18.6mm Width
- Pack of 2 Connectors
- Silicone Sealant Included
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- LED Tape Compatibility: RGBW colour changing LED tapes with 30 to 120 LEDs per Meter IP silicone encased LED tape, 14mm in width
- Rated Current Current: Up to 5 Amps
- Rated Voltage: 0-36V
- Operating Temperature: -20ºC to +50ºC
- PU Casing Temperature Resistance: 105º
- Casing Material: PU
- Contact Point Material: Copper
- Fire Resistance: Conforms to UL 94-V0

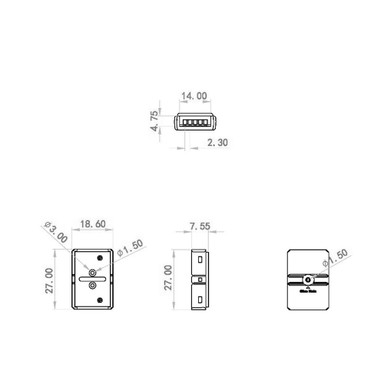

- Dimensions (W x L x H): 18.60mm x 27mm x 7.55mm
- Certification: CE, RoHS

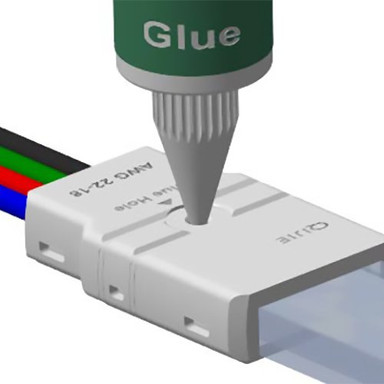

A new innovative design of Solderless IP rated connectors designed to connect two runs of IP Rated RGBW 5 Core LED tape with a width of 14mm. As well as the connector, included in the pack is a tube of silicone ready for post installation injection to maintain IP65 rating once secured.
Minimise your installation times and costs with this new connection system, designed to be both simple to fit and maintain a long term professional standard installation.
Installation instructions can be downloaded below.
Supplied with a 10ml tube of transparent silicone sealant.
Please Note: IP Rating is subject to correct installation, suitable for installation into LED channel with an internal width of 18.6mm or more. NOT compatible with COB LED Tapes
Product Specification
| Ingress Protection (IP) | 65 |
| Product Weight (g) | 10 |
| Battery Included | No |
| Items/Sets Per Pack | 2 |
| Brand | Tagra |
| Product Height (mm) | 10 |
| Depth (mm) | 100 |
| Width (mm) | 19 |
| Dimensions LxWxH (mm) | 100x19x10 |
| Warranty (Years) | 2 |
| Body Material | Plastic |
| Body Colour | White |
