Standard Flat Water Resistant IP65 Profile 18.77mm x 8.75mm

Specifications:

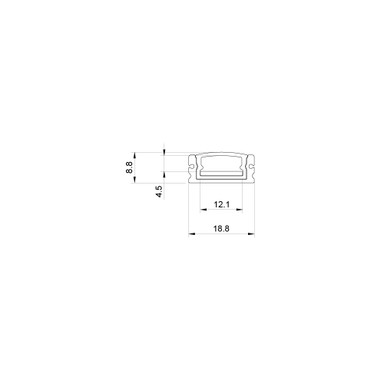

• Dimensions: 18.77x8.75mm
• Max Tape Width: 10mm
• Water resistance: IP65
• Material: PC and anodized aluminium



Applications:

Outdoor Areas:



• Patios and Decks: For ambient lighting or highlighting specific features.
• Garden Paths: Illuminate walkways for enhanced visibility and aesthetics.
• Building Perimeters: For security or decorative purposes.



Indoor Wet Areas:



• Bathrooms: Above showers, sinks, or as general ambient lighting.
• Kitchens: Under-cabinet lighting or around the sink.



Commercial Spaces:

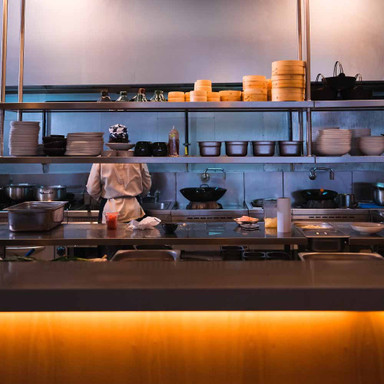

• Bars and Restaurants: Especially in outdoor seating or areas close to kitchen splashes.
• Retail Displays: Highlight products in outdoor stalls or areas prone to moisture.
• Spas and Pools: Around saunas, pools, or shower areas.



Industrial Settings:



• Manufacturing Plants: In areas where machinery might splash water.
• Warehouses: Especially in areas where goods are cleaned or might be exposed to moisture.



Additional information:

• Designed to house IP20 LED tapes and protect against water ingress
• Mounting brackets and end caps sold separately in the 'you may also need' section above
• Choice of 2 or 3 metre lengths



This IP65 surface-mounted LED profile is designed to offer protection against dust and exposure to light water exposure, making it suitable for both indoor and outdoor applications where moisture and dust may be a concern.



Using an IP65 surface-mounted LED profile ensures that LED strips remain protected from external factors, enhancing their longevity and performance. When selecting such profiles, it's crucial to ensure the seals, end caps, and any other accessories are correctly installed to maintain the IP65 rating.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The included semi clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor and outdoor environments.

This profile is made from fully anodized aluminium and is corrosion proof; The IP65 rating means it's dust-tight and can withstand low-pressure water jets from any direction, making it suitable for damp or wet environments.
