Syndeo by Tagra | 24V | 3 Way Splitter Extension Cable | RGB+CCT | 6 Core | 1.5m

Specifications:

• Input Voltage: 24V
• Input Connection: RGB+CCT Syndeo Connector
• Output Connection: RGB+CCT Syndeo Connector
• Output Voltage: 24V
• Max. Current: 3A
• Cable Length: 1500mm
• Material: PVC
• Cable Colour: Black
• Cores: 6 Core
• IP Rating: IP20
• Certification: UKCA, CE
• Warranty: 3 Years

Information:

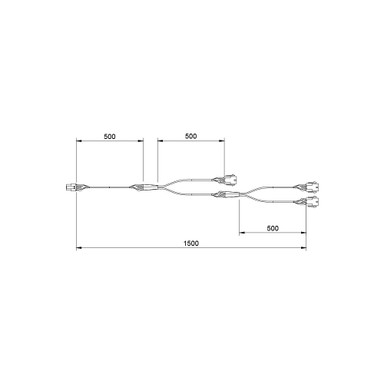

This Syndeo RGB+CCT 3 Way Splitter Extension Cable is designed to split a single output into 3 seperate outputs. Must be used with our Syndeo RGB+CCT LED Module. It has an overall length of 1.5 metres and has staggered outputs at 500mm increments along the extension cable, one output at 1000mm and two outputs at 1500mm (see dimensions image). This product is made from PVC and must be kept out of direct sunlight to avoid damaging the material.

Featuring a 22 AWG cable gauge it is capable of handling a maximum current of 3A. It comes with UKCA and CE certification and a 3 year warranty as standard.

Must be used with our Syndeo RGB+CCT LED Module.

Installation:

Rated at IP20, this product is suitable for indoor use only. Keep out of direct sunglight. Connect the input end via the push-fit connector into the LED module. Then connect the output connector to the LED lights you wish to extend. Fully uncoil the cable before turning on to reduce the chance of over-heating.

Follow the instructions on the user manual for more detailed steps and to find a list of precautions for the product.

Required Products:

The list of products below are required in order to properly operate this product:

• Syndeo by Tagra 24V RGB+CCT LED Module
