Syndeo by Tagra | 24V | Extension Cable | RGB+CCT | 6 Core | 2m

Specifications:

• Input Voltage: 24V
• Input Connection: RGB+CCT Syndeo Connector
• Output Connection: RGB+CCT Syndeo Connector
• Output Voltage: 24V
• Max. Current: 3A
• Cable Length: 2000mm
• Material: PVC
• Cable Colour: Black
• Cores: 6 Core
• IP Rating: IP20
• Certification: UKCA, CE
• Warranty: 3 Years

Information:

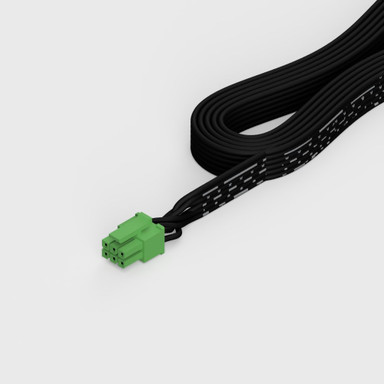

The Syndeo RGB+CCT Extension Cable is a 2 metre long cable that is designed the extend the output between the Syndeo RGB+CCT Module and Syndeo LED Lights. It features a male and female RGB+CCT connection at either end. The male end must be connected into a Syndeo RGB+CCT LED Module and the female end must connect into a Syndeo LED Light product. This product is made from PVC and must be kept out of direct sunlight to avoid damaging the material.

Featuring a 22 AWG cable gauge it is capable of handling a maximum current of 3A. It comes with UKCA and CE certification and a 3 year warranty as standard.

Must be used with our Syndeo RGB+CCT LED Module.

Installation:

Rated at IP20, this product is suitable for indoor use only. Keep out of direct sunglight. Connect the input end via the push-fit connector into the LED module. Then connect the output connector to the LED lights you wish to extend. Fully uncoil the cable before turning on to reduce the chance of over-heating.

Follow the instructions on the user manual for more detailed steps and to find a list of precautions for the product.

Required Products:

The list of products below are required in order to properly operate this product:

• Syndeo by Tagra 24V RGB+CCT LED Module
