Tagra | 12-48V | Rotary | 2.4GHz | LED Dimmer | Max. 8.5A | IP20
TAG-8ADIM
£10.80 Inc. VAT
Key Features
- Single Colour LED Dimmer
- 12-48V DC
- Max Current: 8.5A
- Smooth Dimming
- 30 Metre RF Control Range
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Specifications:
- Input Voltage: 100-240V AC
- Input Signal: RF 2.4GHz
- Output Signal: 0-10V
- Output Current: Max. 3A
- Control Distance: 10 metres (unobstructed)
- Dimming Range: 0-100%
- Dimensions (mm): 86L x 86W x 48H
- Warranty: 5 Years
Information:
Introducing our Rotary LED Wall Plate. This product features a high strength glass panel and brushed design rotary knob. Available in both black and white finish to suit your interior requirements. Compatible with single colour strip lights, just connect to a 0-10V power supply for smooth dimming.
Features compatibility with RF 2.4GHz single or muti-zone remotes to allow you to control the lighting from a distance.
Manufactured from high quality materials and components and comes with a 5 year warranty as standard.
Installation:
Available in IP20 making it suitable for indoor installation. Designed to be connected to a mains power supply. Can be installed into a standard UK back box (35mm depth) using the detachable baseplate. We recommend this product be installed by a qualified electrician.
Required Products:
The list of products below are required in order to properly operate this product:
- 0-10V Dimmable LED Driver
- Single Colour LED Strip Light
Product Specification
| Warranty (Years) | 5 |
| Control Distance No Obstruction (m) | 30 |
| DIP Switch | Yes |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Storage Humidity Max. (°C) | 75 |
| Working Humidity Max. (°C) | 93 |
| Input Control Connection Type | Screw |
| Input Current Max. (A) | 8.5 |
| Input Current Type (A) | DC |
| Input Terminal / Connector Type | SCREW |
| Number of Input Terminals | 2 |
| Input Voltage Min. - Max (V) | 12-48V |
| Body Colour | WHITE |
| Product Height (mm) | 32 |
| Depth (mm) | 59 |
| Product Weight (g) | 55 |
| Width (mm) | 66 |
| Constant Voltage / Constant Current | Constant Voltage |
| Number of Control Channels | 1 |
| Number of Output Terminals | 2 |
| Output Current Max. (A) | 8 |
| Output Current Max. @ 12V (A) | 8 |
| Output Current Max. @ 24V (A) | 8 |
| Output Current Max. @ 48V (A) | 6 |
| Output Current Type | DC |
| Output Terminal / Connector Type | SCREW |
| Output Voltage Min. - Max. (V) | 0-48V |
| Electrical Safety Class | III |
| Dimming Range Min. - Max (%) | 0-100% |
| Operating Temperature Min. - Max. (°C) | -20℃ to -2℃ |

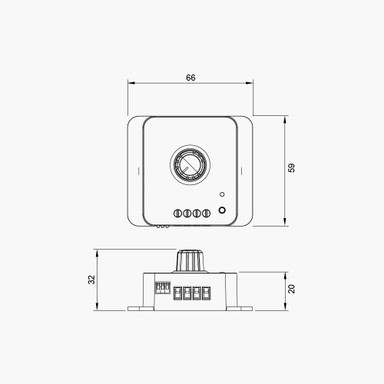

| Dimensions LxWxH (mm) | 59x66x32 |
| Brand | Tagra |
