Tagra Super Slimline Linear Professional 12V Constant Voltage LED Driver 60W
TAGTHIN12V60W
£25.20 Inc. VAT
Key Features
- 12V
- Up to 60 Watts
- Constant Voltage LED Driver
- IP20
- 3 Year Warranty
- Slimline Design
Pay by card, American Express, PayPal, Apple Pay or Google Pay
Delivery & Returns
- Free UK DeliveryOrders over £75
- Next Day DeliveryFrom £8.95
- Returns14 Day Policy
Product Overview
Technical Specifications:
- 12v Constant Voltage
- 60w Power Output
- 5 Amp Max
- Professional Terminal Ends
- ROHS & CE Approved
- Short Circuit Protection
- Over Voltage Protection
- 3 year warranty

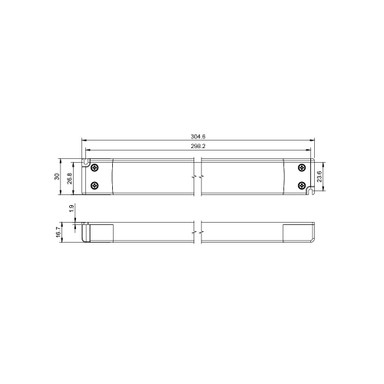

- Dimensions (L x W x H): 304.6mm x 30mm x 16.7mm
Introducing our premium range of slimline power supplies for LED Strip lights - Tagra is a professional brand which provides high end LED equipment.
The Tagra 60W 5A 12v Slimline Power supply is designed for high end demanding installations in intricate areas where space saving is a priority, such as light boxes, linear luminaires and coving lighting. This product comes with a 3 year warranty as standard for your peace of mind. The exceptional reliability record is down to its high quality internal components that give it a power factor of 0.9 and an overall efficiency of up to 88%. This product has protection against short circuits, overloads, over temperature and over voltage. This product is rated IP20 so please ensure that it is installed indoors and away from moisture and liquids.
all products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.
Product Specification
| Output | - |
| Output Voltage | 12V |
| Output Current | Up to 5 |
| Rated Power | Up to 60 Watts |
| Dimming Mode | Non Dimmable |
| Input | - |
| Input Voltage Range | AC180-264V |
| Input Frequency | 50/60Hz |
| Power Factor | > 0.9 |
| Inrush Current | < 75A |
| Environment | - |
| Ingress Protection | IP20 |
| Min. Operating Temperature | -20°C |
| Max. Operating Temperature | 45°C |
| Protection | - |
| Overload Protection | - |
| Short Circuit Protection | Yes |
| Over Voltage Protection | Yes |
| Electrical Safety Class | II |
| Guarantee | 3 Years |
| Dimmable | No |
| Power Factor (A) | 0.9 |
| Application Environment | Indoor |
| Body Material | Plastic |
| Ingress Protection (IP) | 20 |
| Interior or Exterior Use | Interior |
| Input Current Type (A) | AC |
| Input Frequency Min. - Max. (Hz) | 50-60Hz |
| Input Voltage Min. - Max (V) | 180-264V |
| Body Colour | White |
| Product Weight (g) | 165 |
| Constant Voltage / Constant Current | CV |
| Output Current Max. (A) | 5 |
| Output Current Type | DC |
| Output Voltage Min. - Max. (V) | 12-12V |
| Battery Included | No |
| Over Current Protection | Yes |
| Over Temperature Protection | Yes |
| Operating Temperature Min. - Max. (°C) | -20℃ to 45℃ |
| Brand | Tagra |
| Family Name | Tagra Thin Drivers |
| Rated Power (W) | 60 |
| Wattage (W) | 60 |
| Product Height (mm) | 17 |
| Depth (mm) | 305 |
| Width (mm) | 30 |
| Dimensions LxWxH (mm) | 305x30x17 |
| Warranty (Years) | 3 |
