Tile-in Aluminium Profile, 2 Metre Length with Diffuser, 33 x 11mm

Specifications:

• Dimensions: 13x11mm (excluding tile in trim)
• Max Tape Width: 10mm
• Material: Anodized aluminium



Applications:

• Ideal for bathroom and kitchen installations or any wall tiled areas



Additional information:

• Semi-clear diffuser included

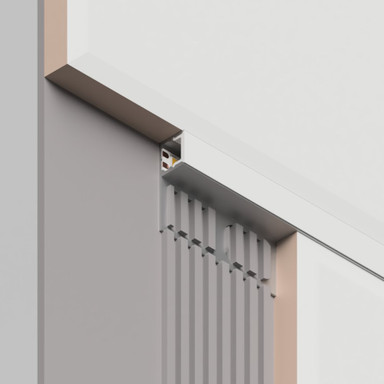

• Can be recessed into wall tiles when tiling
• End caps available



Tile-in aluminium profile allows you to create stunning modern lighting, suitable for bathrooms, kitchens, and any tiled area.



Because of the unusual edge trim, regular depth tiles up to 10mm wide can be placed on top and the edges sealed as normal when tiling. Also appropriate for outer edges. When placed, it produces a flush finish.



Hints and tips:

Diffusers

Diffusers will affect the brightness and CCT (colour temperature) of an LED tape when housed in a LED channel or profile. The included semi-clear diffuser means 70-75% of the brightness of the installed LED strip light will shine through.



As well as the brightness, diffusers will also alter the kelvin temperature of the installed LED strip light by approximately 10%. Opal diffusers will make the kelvin temperature/CCT appear warmer, semi-clear diffusers will make the Kelvin Temperature/CCT appear cooler and transparent diffusers will have no effect.



As an example, a 6000K 1000 lumen per metre LED strip light installed inside a metre length of LED channel using an opal diffuser would create a light bar with an overall output of approximately 5600K and 450 to 500 lumens.



Non-spotting finish

To achieve a highly desired non spotting finish, consider using this profile with an LED tape of more than 120 LEDs per metre or a COB LED strip light. As a rule of thumb, the more LEDs per metre on your chosen strip light, the less chance there will be of a spotting/dotting effect.



Bespoke lengths available

Ultra LEDs are one of just a few providers in the UK to supply custom channel lengths for easier installation. Simply get in touch for a bespoke quotation.



Perfect for indoor use in dry and damp environments.

This profile is made from fully anodized aluminium and is corrosion proof; meaning it's ideal for using indoors in dry environments and in damp environments such as bathrooms when installed using a suitably IP-rated LED strip light.
