WAGO | LED Connector | Splicing | 0.14-4mm² | 3 Conductor | Pack of 50

Specifications:

• Nominal Voltage: 450V
• Max. Current: 32A
• Conductor Range: 0.14mm² - 4mm²
• Connection Points: 3

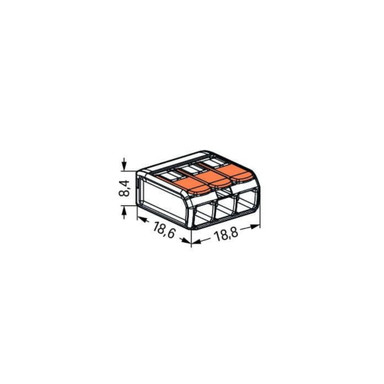

• Dimensions: 18.8 x 8.4 x 18.8mm

Information:

This WAGO connector is suitable for a variety of installations. It features a slim design that saves space and is suitable for installation in tight areas. Offering a tool-free connection and disconnection thanks to its convenient CAGE CLAMP lever technology. Can be used with a range of copper conductor sizes from 0.14mm² up to 4mm².

Installation:

Features an IP20 rating making it suitable for indoor installation.

Use the snap fit levers to connect and disconnect the wiring. It is recommended that 11mm of cable jacket is stripped from the wire to reveal the bare copper wire. Lift up the lever, insert the copper wire into the connector until it hits the products backstop, and snap down the lever to secure the connection. Reverse the process for disconnection.
